HMD Project – Part 15 (My second Rift)

Still Ugly. But much much lighter.

Using 4X lenses, http://www.theloupestore.co.uk/Classic-Magnifying-Glasses/Round/Robust-Magnifier.html as my ‘Palmer Loupes’ hadn’t yet arrived.  They have now though, so I will start a design from scratch; in carbon fibre.

So, the ingredients are; set of lenses as above, a Maplins project box, an old set of ski goggles, some foam sheeting, hot glue and some gaffer tape.

On top is the guts of an old Gyration Ultra mouse; works well.

  • Lenses are held in place by hot glue
  • Goggles are bolted in place at top and hot glued on bottom
  • Unlike most others, I have left gaffer tape off the sides of this and instead fitted blinkers; this means that people with small faces (women) can still get a nice comfy fit from the goggles.  I can’t fix their IPD though.

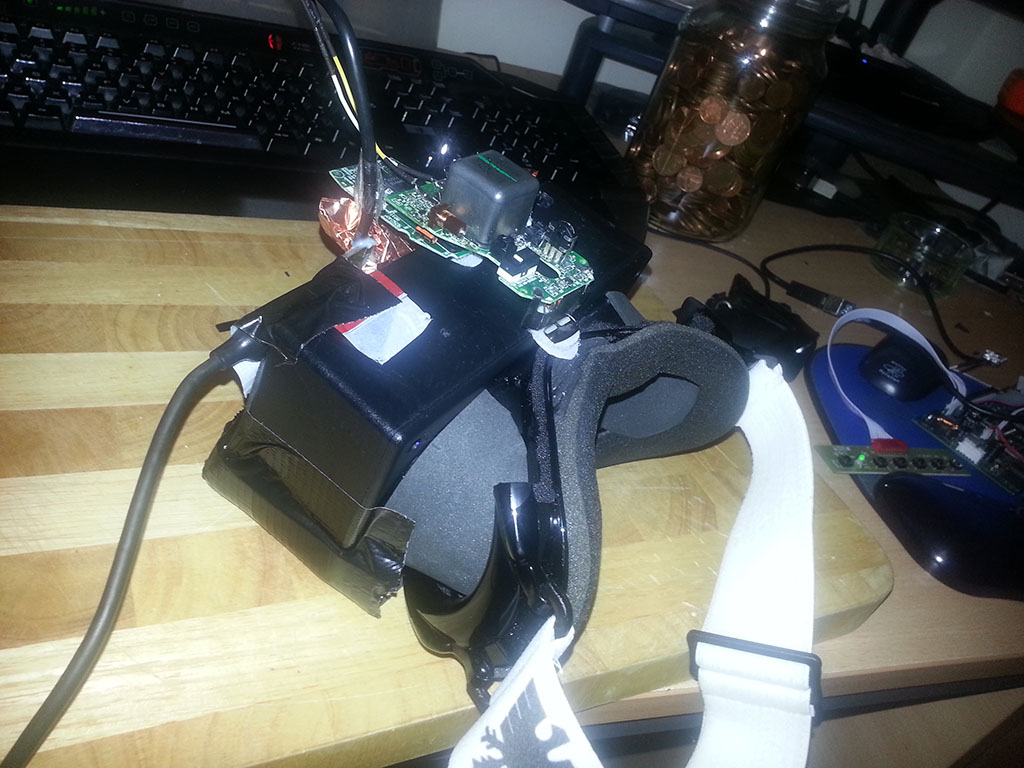

Anyway; here we are:



This entry was posted in HMD Display. Bookmark the permalink.

2 Responses to HMD Project – Part 15 (My second Rift)

  1. Cool. Any better performance than the Rift DK?

  2. z says:

    This was before the DK.

    The DK is far far superior manufacturing precision.

    The precision of the tracking in the Rift was / is, frankly staggering – coupled with the community most other things have been left in the dust. Compatibility and software is (almost) everything.

    I am currently spending most of my time within FPV Oculus Rift stuff with http://www.emrlabs.com/index.php?pageid=3
